Technical Parameters:
| G5-510 | |||
| No. | Item | Details | |
| 1 | B axis reducer | Alpha, Germany | Rated torque 167.3N.m, Instaneous max. torque 585.2N.m, Rated speed 43 rpm, max. speed 85 rpm |
| 2 | C axis motor | Direct Drive Motor | speed 3000rpm rated torque 15N.m |
| 3 | D axis motor | Direct Drive Motor | speed 3000rpm rated torque 5.5N.m |

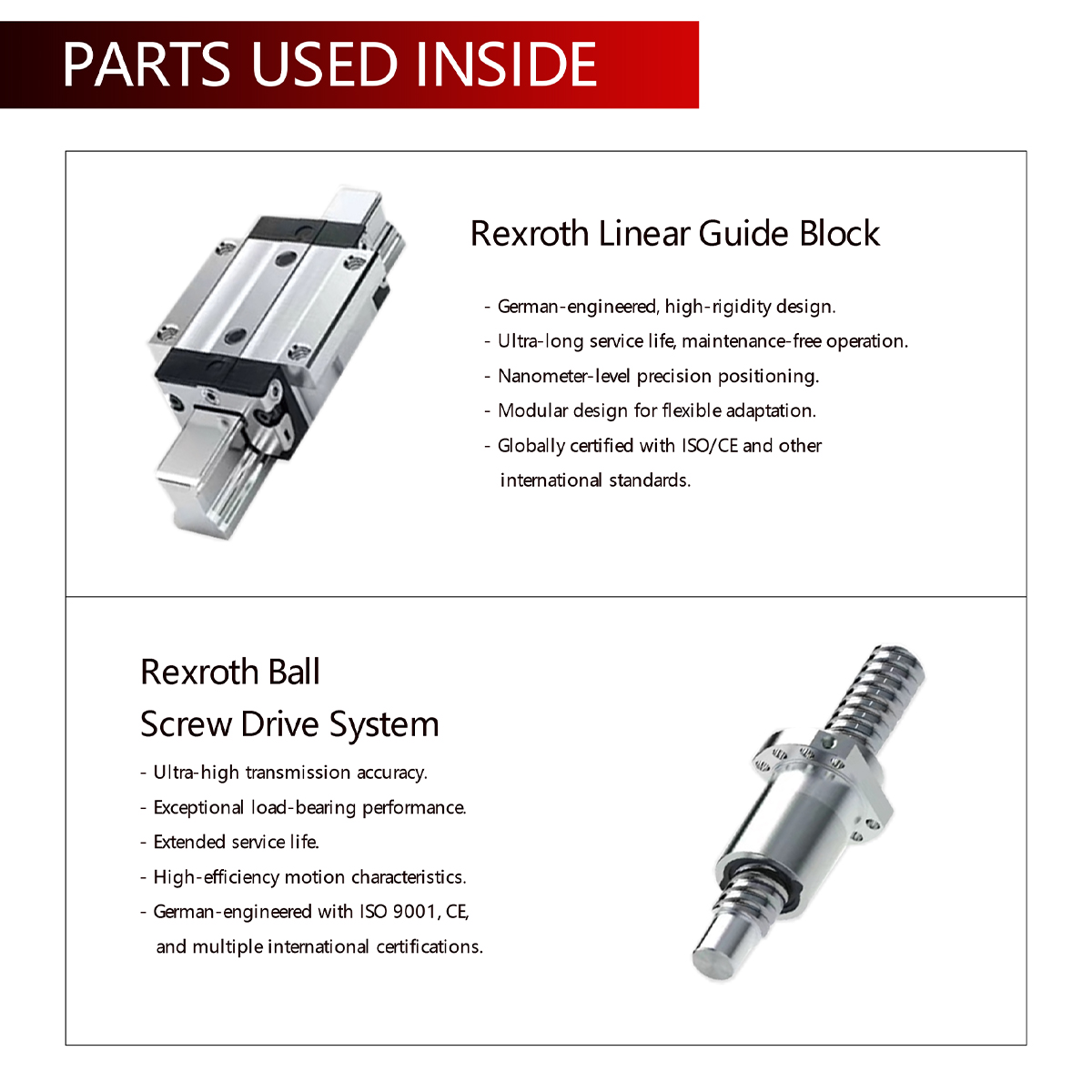

| 4 | Transmission components | Rexroth, Germany | Repeatability: +/-0.005mm |
| 5 | Operation | SYNTEC system | 220MA-10.4 inch screen operation box |
| 6 | Servo motor | Japan | 750w |

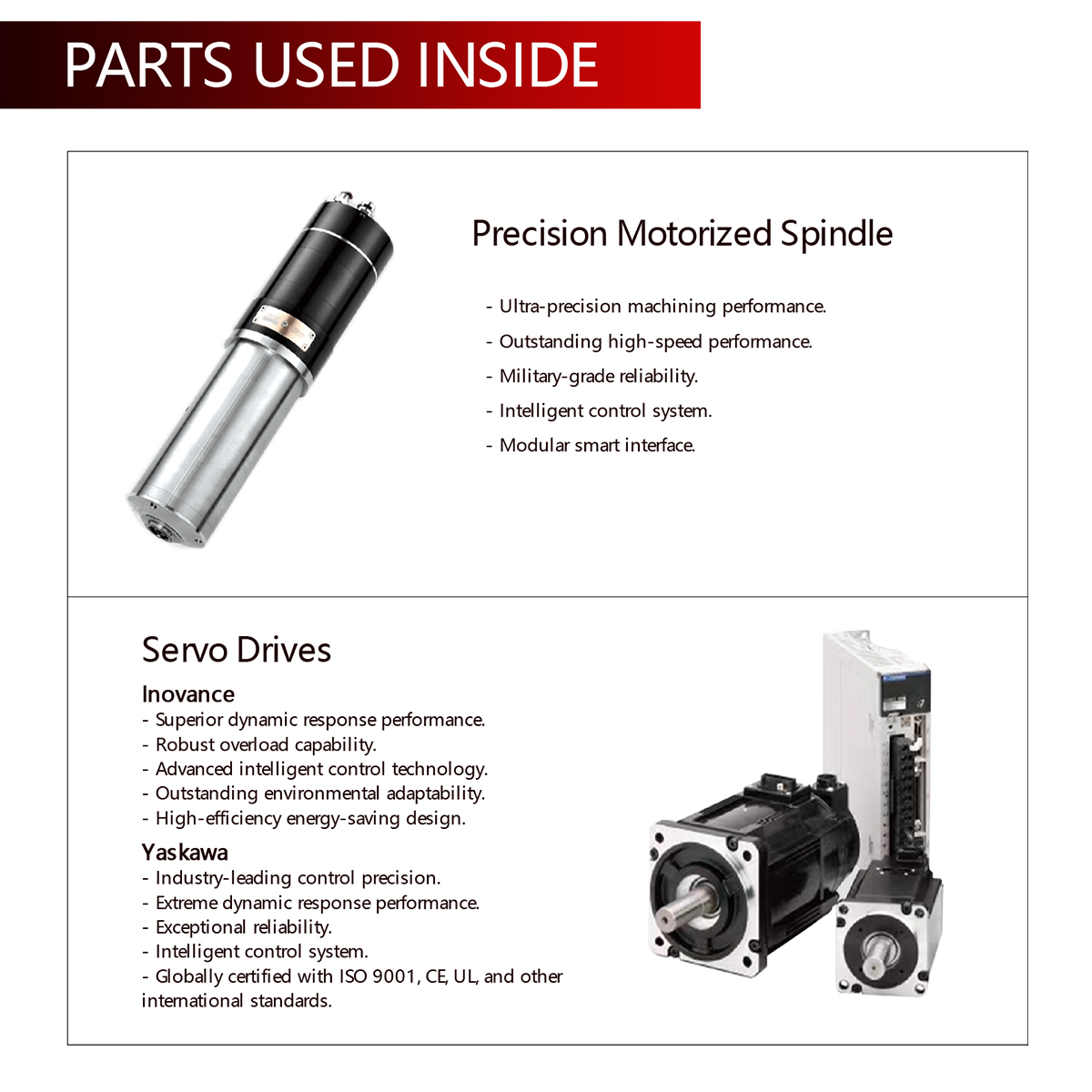

| 7 | Spindle | electric | 8.0kw, max. speed 40000 rpm water cooling with flow-alarm |
| 8 | Tool magazine | servo-drive | Up to 18 engraving tools & 4 turning tools |
| 9 | Tool calibration | auto setting | speed 50-200mm/min, accuracy 0.002mm |
| 10 | Tool holder | HSK E32 | |
| 11 | Collet chuck | ER-20 | |
| 12 | Lubrication | Timing automatic oiling | |
| 13 | Working flatness | +/-0.015mm | |
| 14 | X1 axis stroke | 500mm | |
| 15 | X2 axis stroke | 75mm | |
| 16 | Y axis stroke | 150mm | |
| 17 | Z axis stroke | 230mm | |
| 18 | Body weight | 2.0 tons | |
| 19 | Front door | sliding door | |
| 20 | Layout (mm) | main body | 1200 width*1170 depth*2100 height |
| 21 | Power requirement | three-phase | 380v/50hz |
Support and Services:
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Packing and Shipping:
Fumigation wooden case by sea or by air
FAQ:
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
