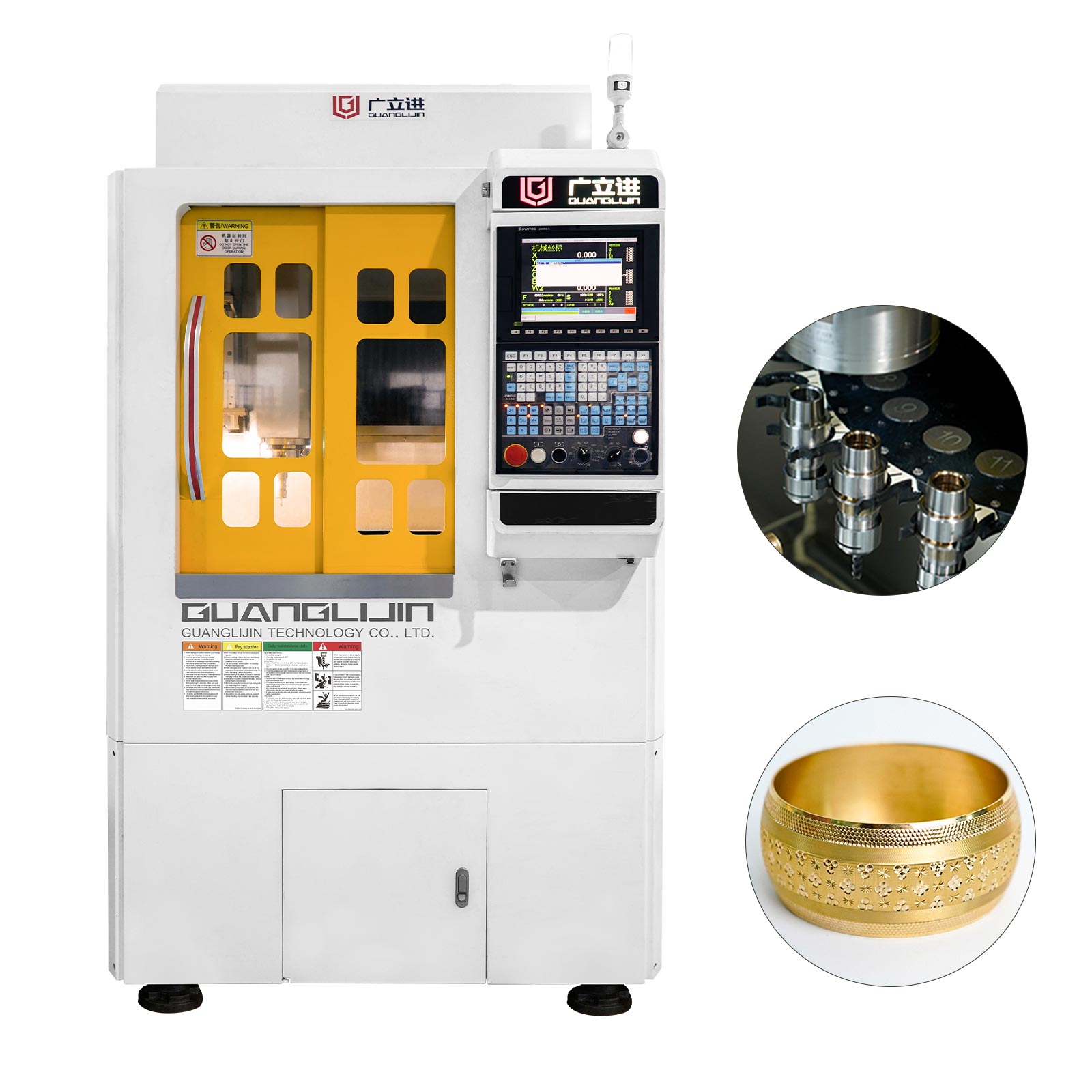

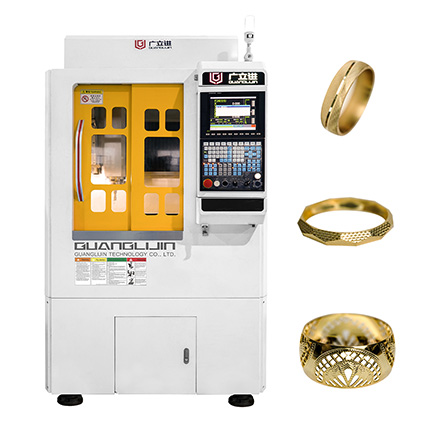

Product Features:
Precious Metal Dedicated Processing Solution
Precision turning for K-gold/platinum with material loss rate <0.3%
Exclusive tool compensation algorithm solves 18K gold ductility challenges
Complex Curved Surface One-Pass Forming
5-axis simultaneous machining enables 360° 3D engraving
0.01mm micro-carving precision perfectly renders 20+ classic band patterns (lace/wheat ear, etc.)
Special-Shaped Jewelry Manufacturing Expert
Innovative dual-spindle design: Roughing + finishing simultaneously
Supports mass production of curved bracelets/hollow pendants and other special-shaped pieces
Hard Material Breakthrough Technology
Dedicated cutting parameter database for aerospace aluminum
60% increased processing efficiency for titanium steel/tungsten gold
Intelligent Production System
Output reaches 150-200 pieces per 8-hour shift (complexity-dependent)
Heritage & Innovation in Craftsmanship
Digital modeling of traditional hand-engraving patterns
Supports direct conversion of 3D designs to machining code
(Technical Highlights: Equipped with German Heidenhain system, high-precision optical tool setter, optional laser marking module for integrated processing-marking functionality)

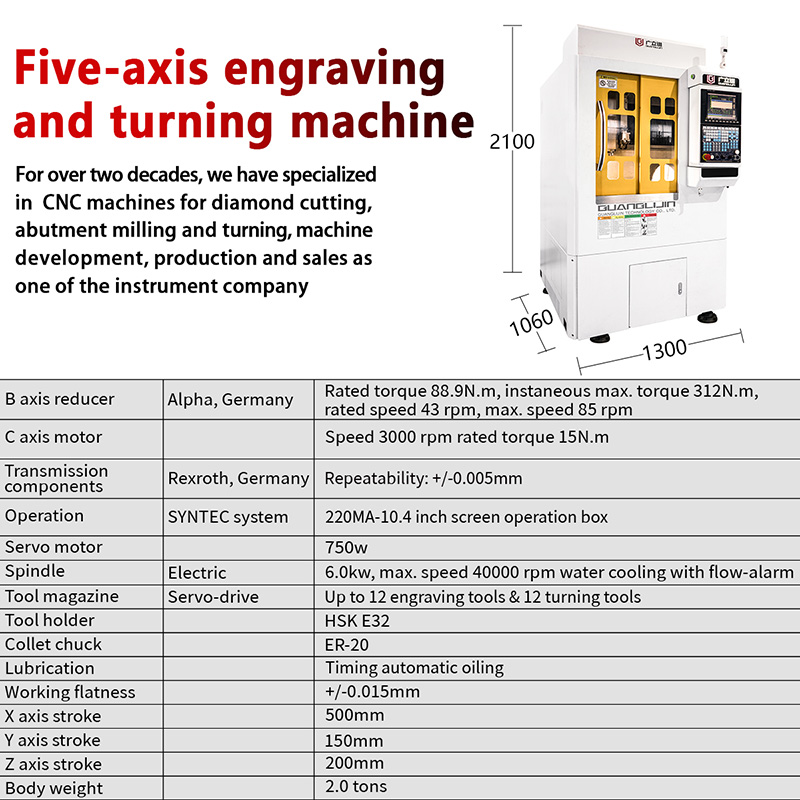

Technical Parameters:
| No. | Item | Details | |
| 1 | B axis reducer | Alpha, Germany | Rated torque 88.9n.m, Instaneous max. torque 312n.m, Rated speed 43 rpm, max. speed 85 rpm |
| 2 | C axis motor | speed 3000rpm | rated torque 15n.m |
| 3 | Transmission components | Rexroth, Germany | Repeatability: +/-0.005mm |
| 4 | Operation | SYNTEC system | 220MA-10.4 inch screen operation box |
| 5 | Servo motor | 750w | |
| 6 | Spindle | electric | 6.0kw, max. speed 40000 rpm water cooling with flow-alarm |
| 7 | Tool magazine | servo-drive | Up to 12 engraving tools & 12 turning tools |
| 8 | Tool holder | HSK E32 | |
| 9 | Collet chuck | ER-20 | |
| 10 | Lubrication | Timing automatic oiling | |
| 11 | Working flatness | +/-0.015mm | |
| 12 | X axis stroke | 500mm | |
| 13 | Y axis stroke | 150mm | |
| 14 | Z axis stroke | 200mm | |
| 15 | Body weight | 2.0 tons | |
| 16 | Front door | sliding door | |
| 17 | Layout (mm) | main body | 1300 width*1060 depth*2100 height |
| 18 | Power requirement | three-phase | 380v/50hz |
Support and Services:
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Packing and Shipping:
Fumigation wooden case by sea or by air
FAQ:
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
